‹ Home › Inventory › 2020 Harley-Davidson Sportster Iron 1200 XL1200NS

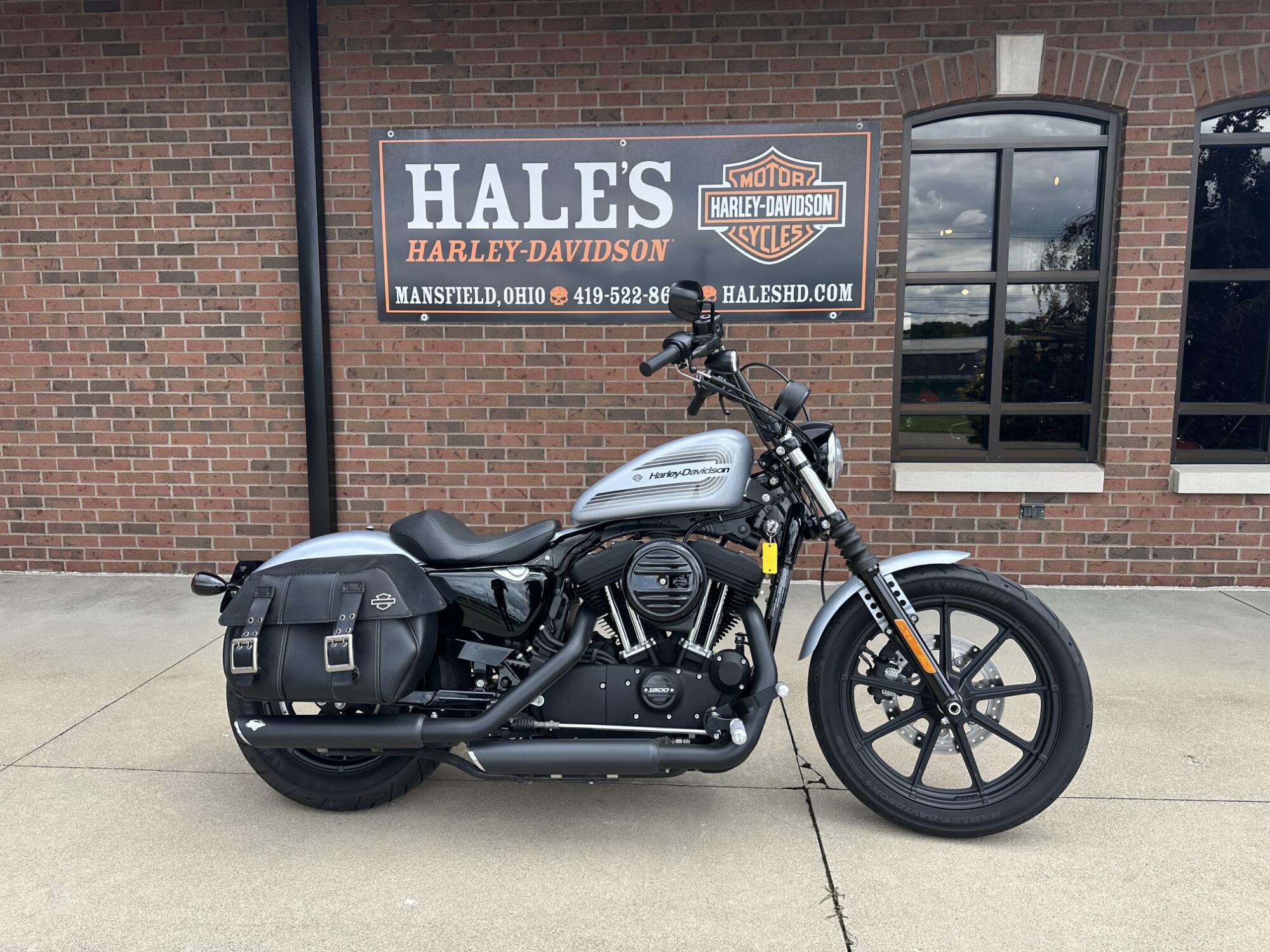

Used 2020 Harley-Davidson Sportster Iron 1200 XL1200NS for sale at Hale's Harley-Davidson in Mansfield, Ohio. If you’re looking for a clue on what the new Iron 1200™ is all about, look no further than the name. It all starts with the 1200cc Evolution® engine that gives you loads of famous Sportster® torque. It’s got a throwback look that goes right to the roots of Sportster, thanks to 70’s-inspired tank graphics. You also get a low-slung Café solo seat, mid-mount controls, and mini ape hanger handlebars for an aggressive, two-fists-in-the-wind riding position. Take the power.

Specifications

Dimensions

add remove
- Length:

  86.6 in
- Ground clearance:

  4.3 in
- Rake (steering head):

  30
- Trail:

  4.6 in
- Wheelbase:

  1,515.0 in
- Tires, front specifications:

  100/90B19 57H
- Tires, rear specifications:

  150/80B16 77H
- Oil capacity:

  2.8 qt.
- Weight, as shipped:

  547 lbs
- Weight, in running order:

  564 lb
Engine

add remove
- Engine:

  Air-cooled, Evolution®
- Bore:

  3.5 in
- Stroke:

  3.8 in
- Displacement:

  1,201.98 in³
- Compression ratio:

  10:01
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Black, staggered exhaust and headers with black slash-cut mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  73.0 ft-lb
- Lean angle, right (deg.):

  27
- Lean angle, left (deg.):

  28
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 38/57 ratio
- Gear ratios (overall) 1st:

  9.315
- Gear ratios (overall) 2nd:

  6.653
- Gear ratios (overall) 3rd:

  4.948
- Gear ratios (overall) 4th:

  4.102
- Gear ratios (overall) 5th:

  3.517
Chassis

add remove
- Wheels, front type:

  Black, 9-spoke
- Wheels, rear type:

  Black, 9-spoke
- Brakes, caliper type:

  Dual-piston front, Dual-piston rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
- Gauges:

  Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
